At Nash Engineering
We offer Advanced Weld Overlay & Cladding services built to extend the Performance and Service life of critical industrial components. In demanding environments, equipment and piping systems are exposed to Corrosion, Abrasion, Extreme Temperatures, and Chemical Attack and our surface engineering solutions provide the durability required to keep operations safe, reliable, and cost-effective.

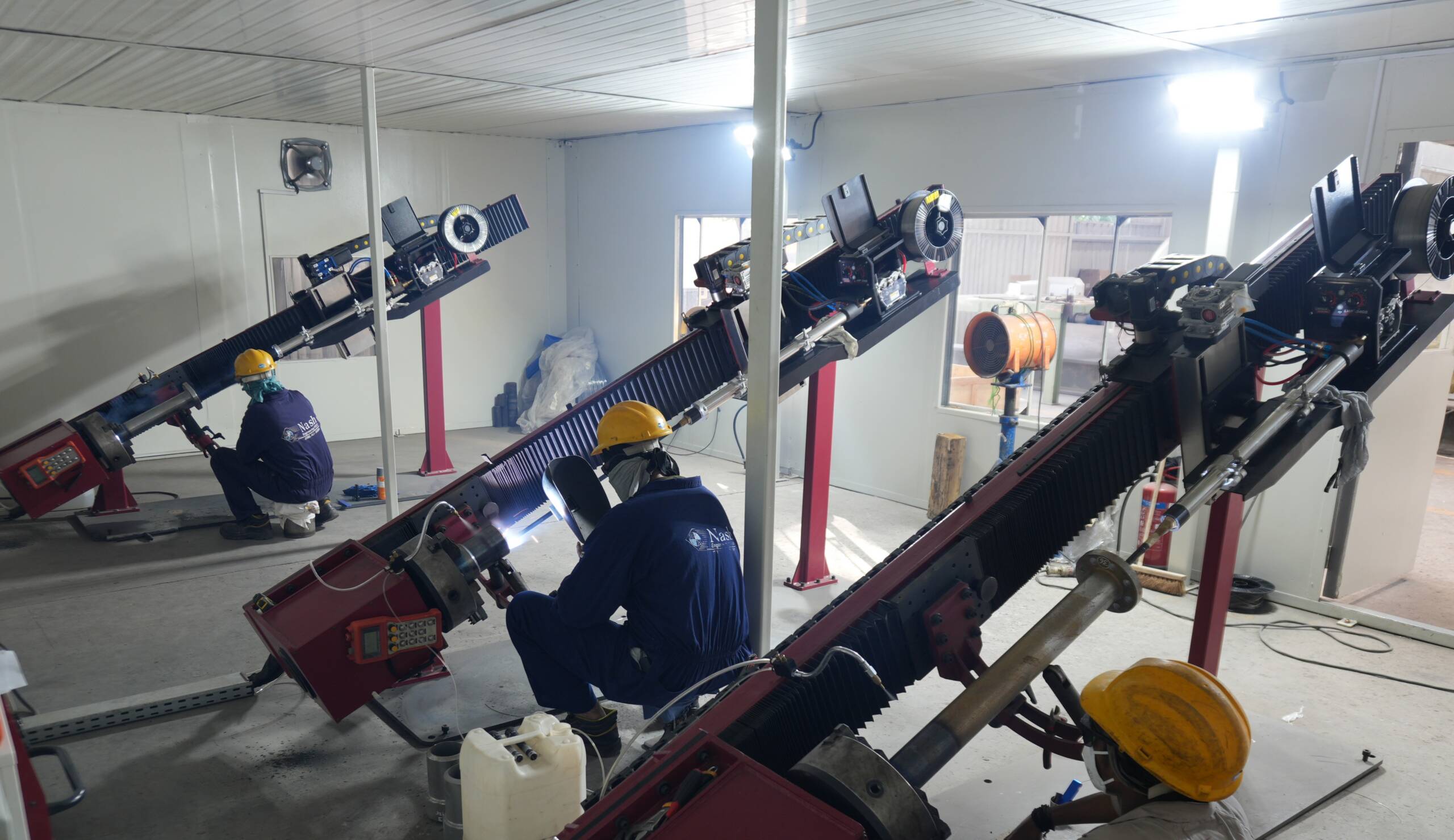

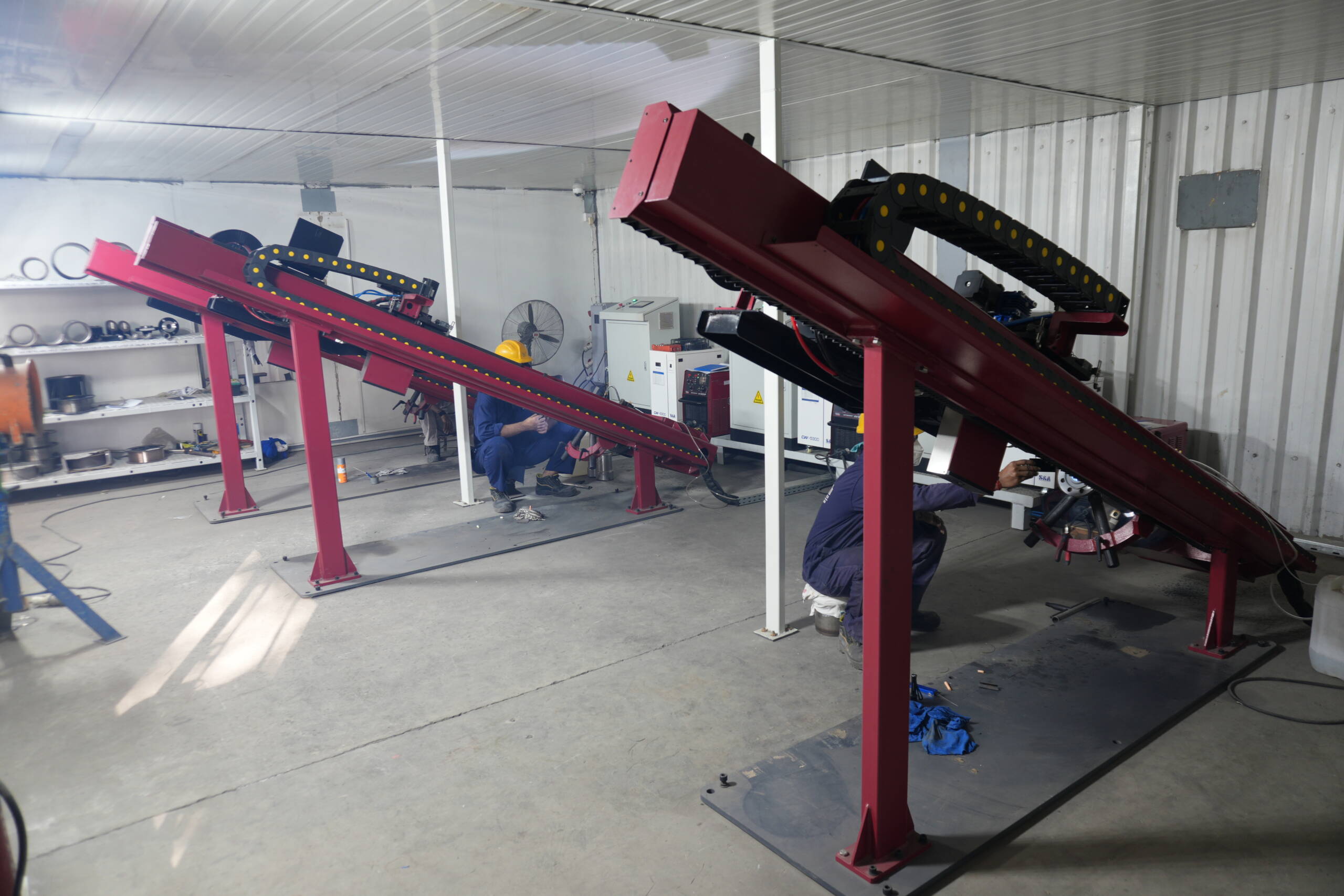

Our facility
Our facility is equipped with Upgraded welding systems and Advanced Cladding technology , enabling us to provide complete solutions under one roof. From inlay to Overlay Welding , We offer end-to-end manufacturing and processing capabilities to meet the most demanding project requirements.
Base Material
All Carbon Steel
CRA Material
Inconel 625/825 Monel 400, SS316L DSS,SDSS,CuNi Hastelloy, Titanium
Diameter
Starting from 1.5″
Length
1 Meter
We specialize in delivering tailored cladding solutions with Precision, Consistency, and Full Documentation , ensuring our clients receive long-term value and proven quality
We Provide Weld Overlay / Cladding Solutions for:
Shell | Pipes and Spools | Fittings – Tees ,Reducers | Flanges & Tube sheets | Valve Bodies | Dish Heads | Custom-Fabricated Products
With strict quality control and complete traceability, we ensure every product meets the required Technical standards with reliable inspection and reporting Our cladding operations are performed using Qualified Welding Procedure Specifications (WPS) and Procedure Qualification Records (PQR) for a wide range of weld overlay cladding materials

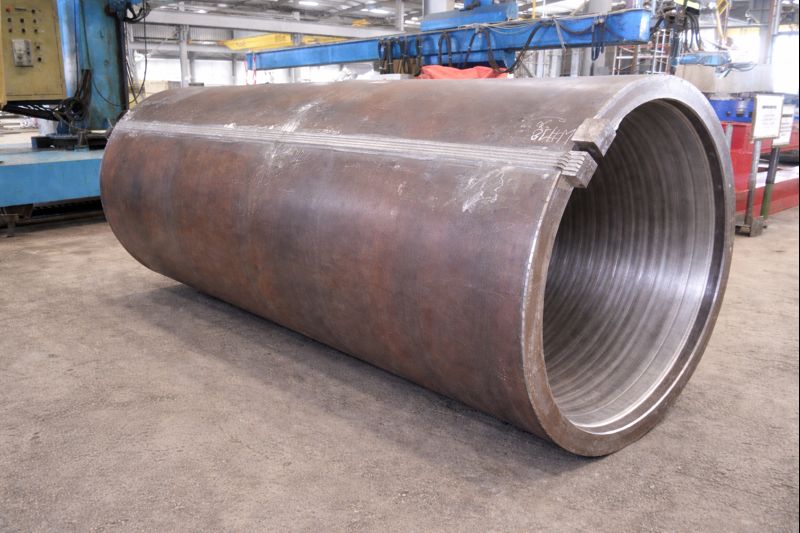

Shell

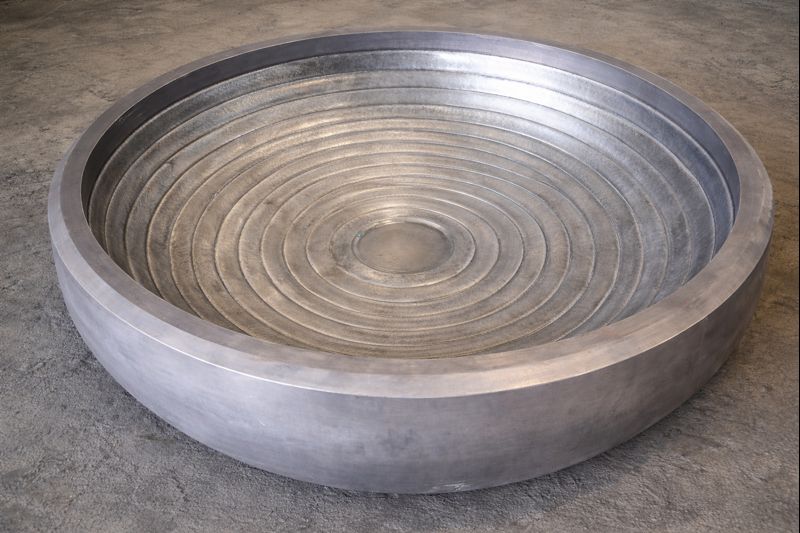

Dish heads

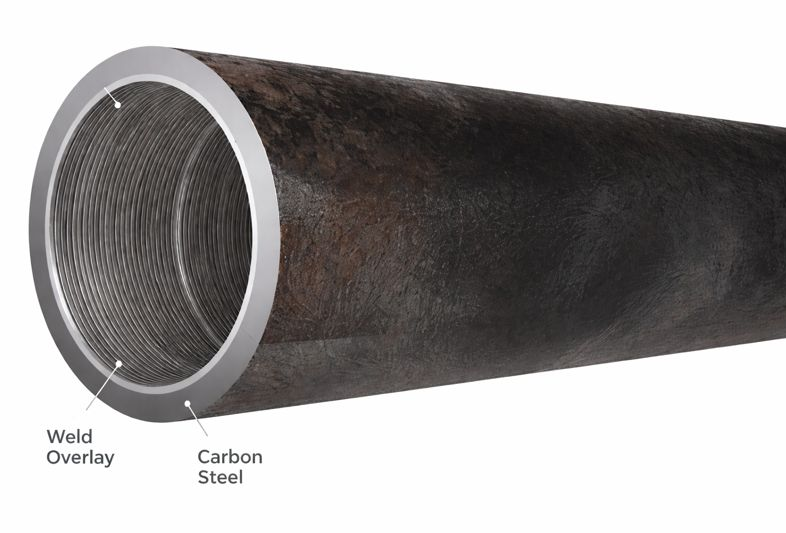

Pipes & Spools

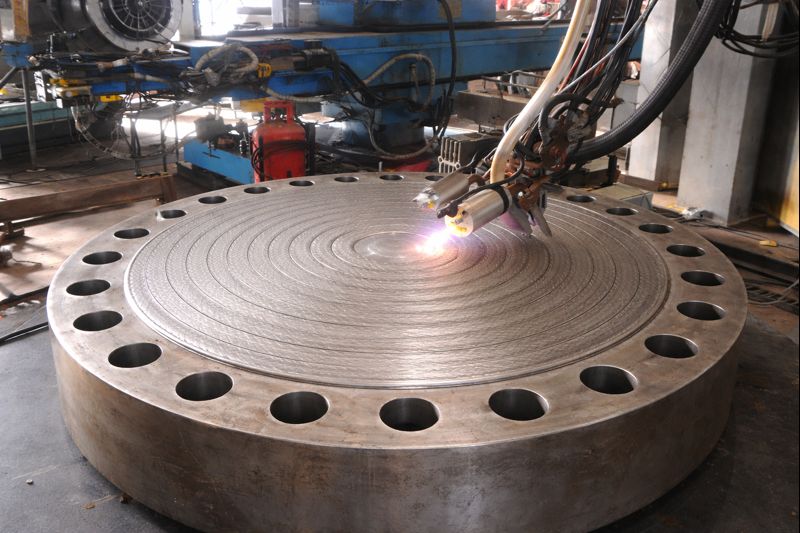

Flanges & Tube sheets

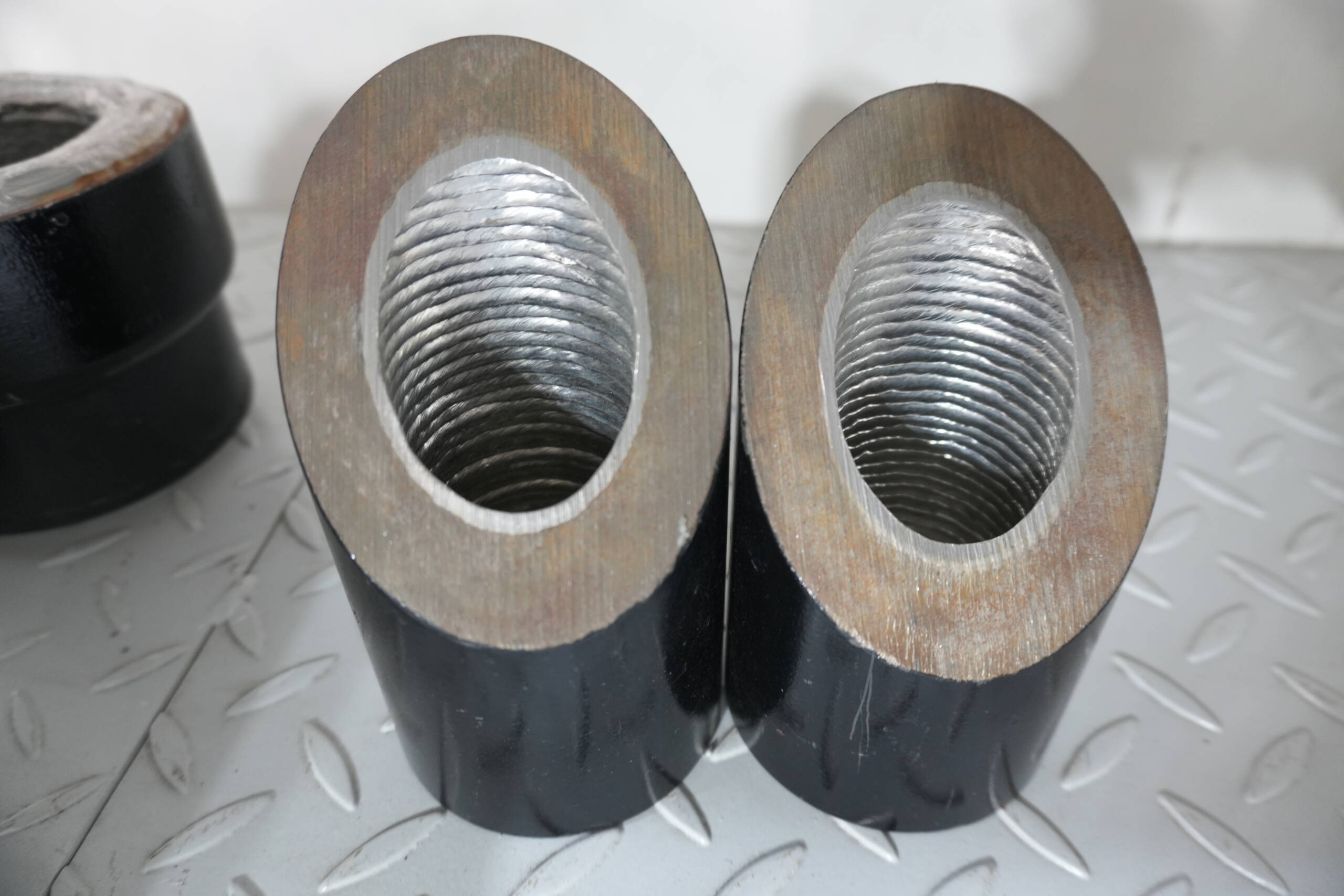

Fittings
Valve Bodies
Our Clad / Overlay Processes
- GMAW (Gas Metal Arc Welding)
- SAW (Submerged Arc Welding)
- ESW (Electroslag Welding)
- SMAW (Shielded Metal Arc Welding)
Technical Capabilites
All Carbon Steel Grades – A106 Gr B, A333 Gr.6, API 5L X60/X65/X70, , SA 105 ,SA 350 LF2 ,SA 234 WPB, SA 516 Gr 60/65/70 etc.
Inconel – N06625, N08825, Monel 400, Cu Ni (Copper Nickel),SS316L,SMO 254, Duplex 2205, Super Duplex 2507,Titanium , Hastealloy etc
Starting From ID – 1.5 “ inch (38mm)
L3 mm – 5.5 mm
Up to 1.0 Meter
These Cladded Components are engineered for the harshest operating conditions and widely used in:
Oil & Gas Production and Pipelines
Petrochemical Processing
Chemical Plants
Renewable Energy & Geothermal Systems
Offshore and Marine Environments
Water Treatment Plants
